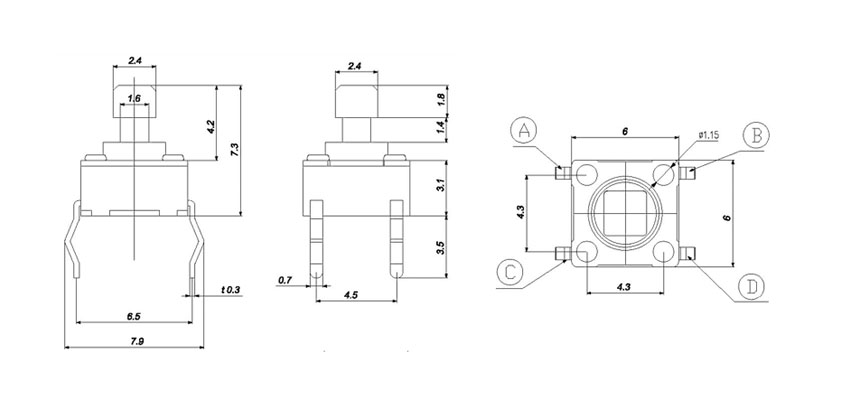

TC-00106 轻触开关6X6方头



基本参数
  1.额定范围Rating: 50mA 12VDC

2.接触电阻Contact Resistance : 50mΩ max(initial)

3.绝缘电阻Insulation Resistance: 100MΩ(minDC 250V)

4.耐压强度Dielectric Strength : AC250V(50/60Hz for 1minute)

5.机械寿命Electrically Life:100,000cycles

6.环境温度Environment temperature: -25℃-70℃

7.操作力度Operating Force: 180/250(±20gf)
