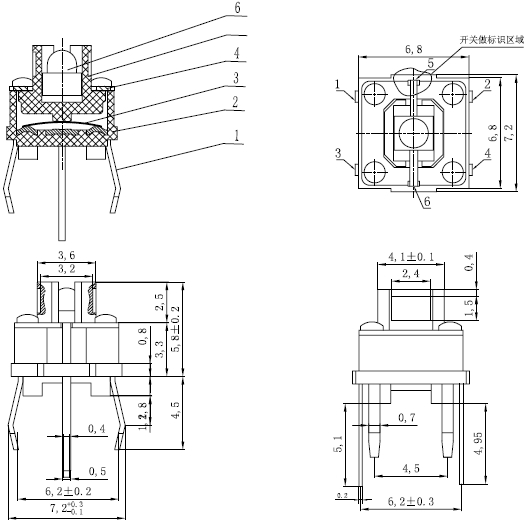

TC-1197-X带灯轻触开关6*6





LED颜色种类：蓝色、红色、黄色、绿色、橙色、双色等。 基本参数
	1.额定范围Rating: 50mA 12VDC 2.接触电阻Contact Resistance : 50mΩ max(initial) 3.绝缘电阻Insulation Resistance: 100MΩ（minDC 250V） 4.耐压强度Dielectric Strength : AC250V(50/60Hz for 1minute) 5.机械寿命Electrically Life:100,000cycles 6.环境温度Environment temperature: -25℃～+105℃ 7.操作力度Operating Force: 180/250(±30gf)
