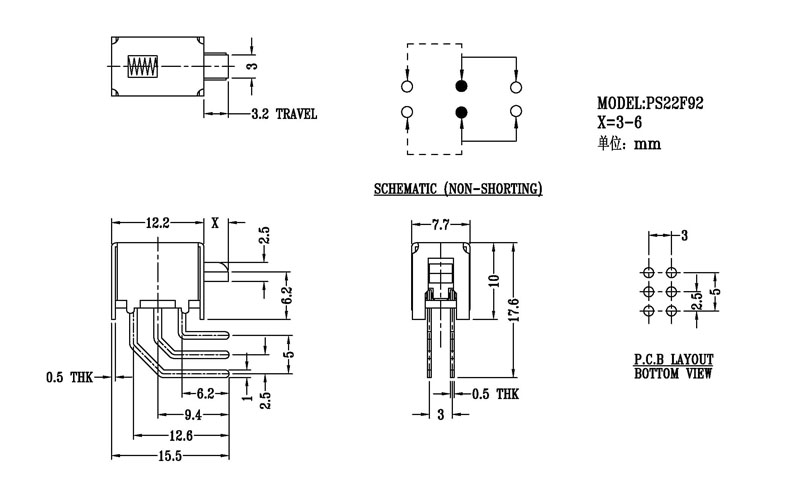

PS-22F92按键开关



基本参数
	1.额定范围Rating: 0.3A 50VDC 2.接触电阻Contact Resistance : 100mΩ max(initial) 3.绝缘电阻Insulation Resistance: 100MΩ（minDC 250V） 4.耐压强度Dielectric Strength : AC250V(50/60Hz for 1minute) 5.机械寿命Electrically Life:10,000cycles 6.环境温度Environment temperature: -25℃-70℃ 7.操作力度Operating Force: 250(±100gf)
